Marantz Model 1090 Integrated Amplifier
|
Please feel free to copy and paste the following HTML code to link to this specific page in auctions or from your web pages: <a target="_BLANK" href="http://www.classic-audio.com/marantz/1090.html">Marantz Model 1090 Details Page <i>on <NOBR>www.classic-audio.com</NOBR></i></a>
It will look like this on your auction or page: Marantz Model 1090 Details Page on www.classic-audio.com
Visitors to your auction or page can click on it, and a new window will open to this web page. Because there will be a new window, the visitor's original browser remains conveniently open to your auction or web page.
|
|
|
|

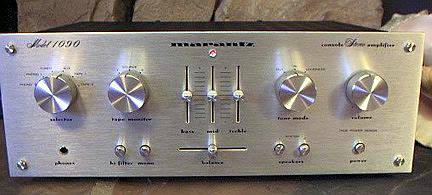

Front View, US version (hi filter)
EBay Auction #129887975
Date: July 16th, 1999
|

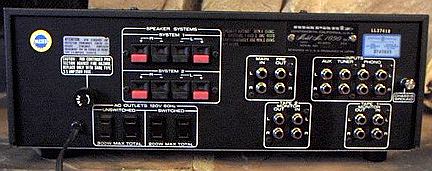

Rear View, US version
EBay Auction #129887975
Date: July 16th, 1999
|
Front View, Euro version (low filter)
Image Attribution: Pascal De Angelis
Date: May 5th, 2003
|
Rear View, Euro version
Image Attribution: Pascal De Angelis
Date: May 23rd, 2003
|
|
| General |
| Retail Price | 240 |
| Resale Value | 110 |
| Designed in | USA |
| Manufactured In | Japan |
| First Year | 1977 |
| Last Year | 1978 |
| Matching Tuners | 2100,2110,2120,2130 |
| Rack Mount | Optional |
| Wood Case | WC-110?, WC-10 |
| Silver Face | Yes |
| Channels | Two |
| Speaker Connections | Two |
| Chassis Ground | Binding Post |
| AC Switch | Yes |
| Fusing | 3.5 amp on rear deck |
| Switched AC Outlets | Two |
| Unswitched AC Outlets | Two |
| Power Consumption | 300 watts |
| Special Option 1 | RHA1 Rack Mount Adaptors |
|
| Physical |
| Width | 16 1/2 |
| Height | 5 3/4 |
| Depth | 11 3/4 |
| Weight | 19.8 lbs |
|
| Amplifier |
| RMS Power Per Channel | 45x2 @ 8 ohms, 57x2 @ 4 ohms |
| Total Harmonic Distortion (THD) | 0.1% @ 45, 0.1% @ 57 |
| Power Bandwidth | 20 hz to 20 khz |
|
| Preamplifier |
| Single Bass Adjustment | Yes |
| Single Midrange Adjustment | Yes |
| Single Treble Adjustment | Yes |
| Tone Control Defeat | Yes |
| High Filter | Yes |
| Gain Control | Yes |
| Loudness Contour | Yes |
| Mono | Yes |
| Balance | Slider |
| Number of Tape Monitors | Two |
| Auxillary Input Source | Yes |
| Phono Input Source | Yes |
| 2nd Phono Input Source | Yes |
| Tuner Source Input | Yes |
| Source Tape Input (as opposed to a tape monitor) | Yes |
| 2nd Source Tape input (as opposed to a tape monitor) | Yes |
| Tape Monitor | Yes |
| 2nd Tape monitor | Yes |
| Preamp to Amplifier Jumper(s) | Yes |
| Headphone Jack(s) | Yes |
| Speaker Selection Nomenclature | System 1, 2 |
|
