Marantz Model 1120 Integrated Amplifier
|
Please feel free to copy and paste the following HTML code to link to this specific page in auctions or from your web pages: <a target="_BLANK" href="http://www.classic-audio.com/marantz/1120.html">Marantz Model 1120 Details Page <i>on <NOBR>www.classic-audio.com</NOBR></i></a>
It will look like this on your auction or page: Marantz Model 1120 Details Page on www.classic-audio.com
Visitors to your auction or page can click on it, and a new window will open to this web page. Because there will be a new window, the visitor's original browser remains conveniently open to your auction or web page.
|
|
|
|

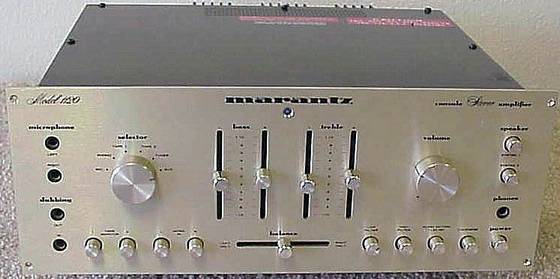

Front View
|
|
| General |
| Retail Price | 449.95, October 1st 1974 Marantz Dealer List |
| First Year | 1973 |
| Last Year | 1975 |
| Wood Case | WC-1 |
| Silver Face | Yes |
| Model Legend | Console Stereo Amplifier |
| Channels | Two |
| Speaker Connections | Two sets |
| Chassis Ground | Yes |
| AC Switch | Yes |
| Fusing | 4 amp 250 volt BUSS MTH |
| Switched AC Outlets | 2 x 300 watts |
| Unswitched AC Outlets | 1 x 300 watt |
| Power Consumption | 120 watts at full power |
|
| Physical |
| Width | 15 3/8 |
| Height | 5 3/4 |
| Depth | 14 |
| Weight | 32.5, shipped |
|
| Amplifier |
| RMS Power Per Channel | 60 |
| Total Harmonic Distortion (THD) | 0.15% |
| Power Bandwidth | 10 Hz to 40 kHz |
| Intermodulation Distortion (IM) | 0.15% |
|
| Preamplifier |
| Multiple Bass Adjustments | Left, Right |
| Multiple Treble Adjustments | Left, Right |
| High Filter | Yes |
| Low Filter | Yes |
| Gain Control | Yes |
| Balance | Yes |
| Number of Tape Monitors | Two |
| Tape to Tape Dubbing | Yes, via front panel jacks |
| Auxillary Input Source | Yes |
| Tuner Source Input | Yes |
| Source Microphone Input | Left, Right |
| Source Tape Input (as opposed to a tape monitor) | Yes |
| 2nd Source Tape input (as opposed to a tape monitor) | Yes |
| Tape Monitor | Yes |
| 2nd Tape monitor | Yes |
| Headphone Jack(s) | Yes |
| Speaker Selection Nomenclature | Main, Remote |
|
