Marantz Model 1122dc Integrated Amplifier
|
Please feel free to copy and paste the following HTML code to link to this specific page in auctions or from your web pages: <a target="_BLANK" href="http://www.classic-audio.com/marantz/1122dc.html">Marantz Model 1122dc Details Page <i>on <NOBR>www.classic-audio.com</NOBR></i></a>
It will look like this on your auction or page: Marantz Model 1122dc Details Page on www.classic-audio.com
Visitors to your auction or page can click on it, and a new window will open to this web page. Because there will be a new window, the visitor's original browser remains conveniently open to your auction or web page.
|
|
|
|

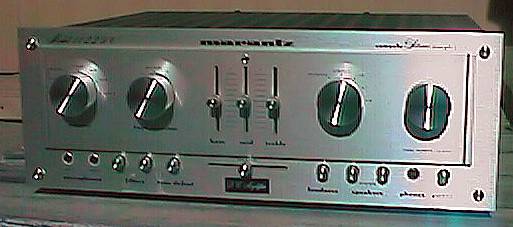

Front View
Image Attribution: Brian Gregory
Date: June 13th, 1999
|

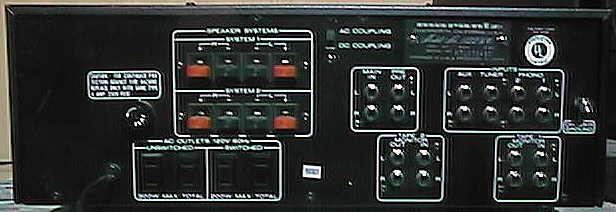

Rear View
Image Attribution: Brian Gregory
Date: June 13th, 1999
|
|
| General |
| Rarity | Rare |
| Retail Price | 350 |
| Designed in | USA |
| Manufactured In | Japan |
| First Year | 1977 |
| Last Year | 1980 |
| Matching Tuners | 2100,2110,2120,2130,2140 |
| Rack Mount | Optional |
| Wood Case | WC-110 |
| Silver Face | Yes, Extruded |
| Channels | Two |
| Speaker Connections | Two Sets |
| Chassis Ground | Binding Post |
| AC Switch | Yes |
| Fusing | 4 amp, 250v |
| Switched AC Outlets | 2, 200 watts total |
| Unswitched AC Outlets | 2, 300 watts total |
| Power Consumption | 420 watts |
| Special Option 1 | RHA1 Rack Mount Adaptors |
|
| Physical |
| Width | 16 1/2 |
| Height | 5 3/4 |
| Depth | 12 1/2 |
| Weight | 28.8 |
|
| Amplifier |
| RMS Power Per Channel | 61x2 @ 8 ohms, 77x2 @ 4 ohms |
| Total Harmonic Distortion (THD) | 0.03% @ 61, 0.06% @ 77 |
| Power Bandwidth | 20 Hz to 20 kHz |
| DC Capable | Switchable |
|
| Preamplifier |
| Single Bass Adjustment | Slider |
| Single Midrange Adjustment | Slider |
| Single Treble Adjustment | Slider |
| Tone Control Defeat | Yes |
| High Filter | Yes |
| Low Filter | Yes |
| Gain Control | Yes |
| Loudness Contour | Yes |
| Mono | L,R,L+R |
| Channel Reverse | Yes |
| Balance | Yes |
| Number of Tape Monitors | Two |
| Auxillary Input Source | Yes |
| Phono Input Source | Yes |
| 2nd Phono Input Source | Yes |
| Tuner Source Input | Yes |
| Source Microphone Input | Left, Right |
| Source Tape Input (as opposed to a tape monitor) | Yes |
| 2nd Source Tape input (as opposed to a tape monitor) | Yes |
| Tape Monitor | Yes |
| 2nd Tape monitor | Yes |
| Preamp to Amplifier Jumper(s) | Yes |
| Headphone Jack(s) | Yes |
| Speaker Selection Nomenclature | Main, Remote |
|
Have some additional information about the Model 1122dc Integrated Amplifier? If so, I would sure appreciate it
if you would add it here: Add Data Form
The database currently contains "slots" for many AM Tuner, FM Tuner, Amplifier and Preamplifier specifications,
as well as many of the controls and features Marantz has made available on these units. You can check the Sample Unit to see all of the database slots. You
might even be surprised at some of the slots that are available. However, if you come up with something that's not in the Marantz Classics database, either a specification
or a feature, I can add it in just a few minutes, along with specific details about that feature for any model(s) you know of. Don't be shy - tell me!
These listings can only be as good as the information in them. With your help, they will improve over time. Please accept
my heartfelt thanks in advance for anything you can contribute.
